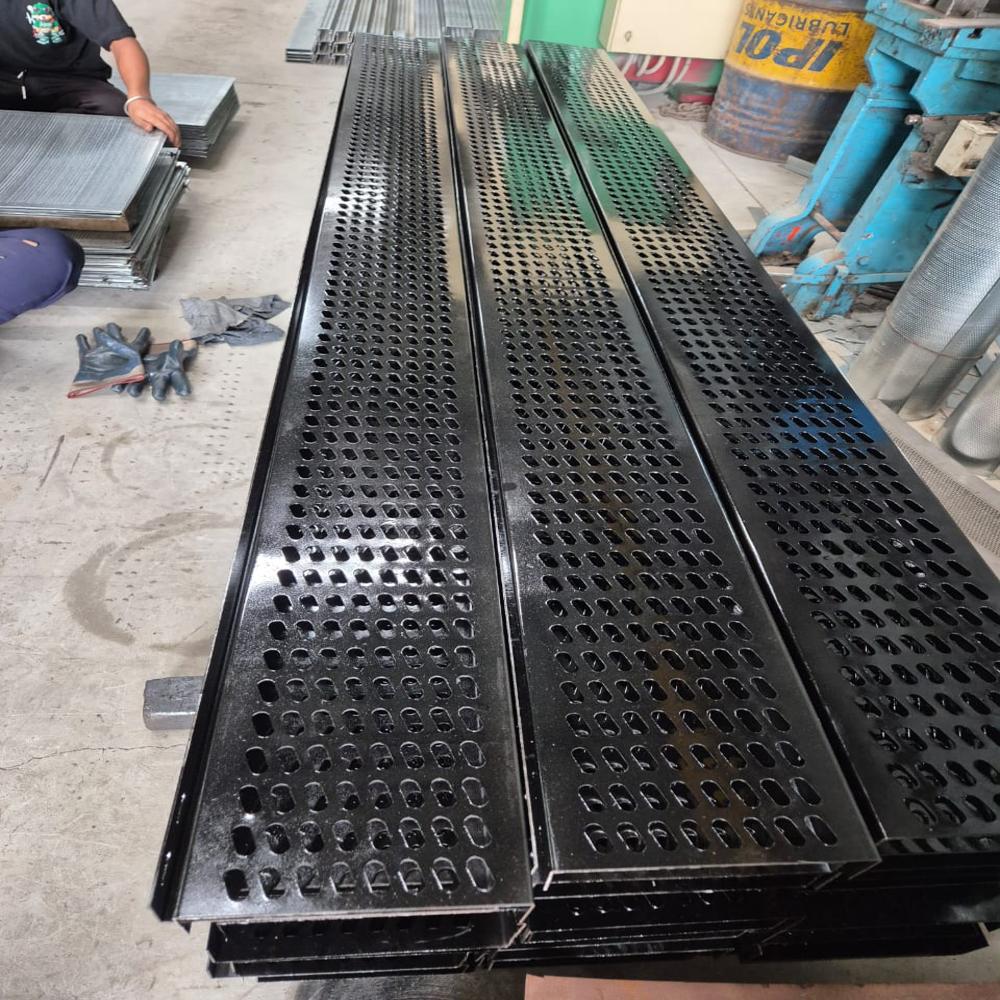

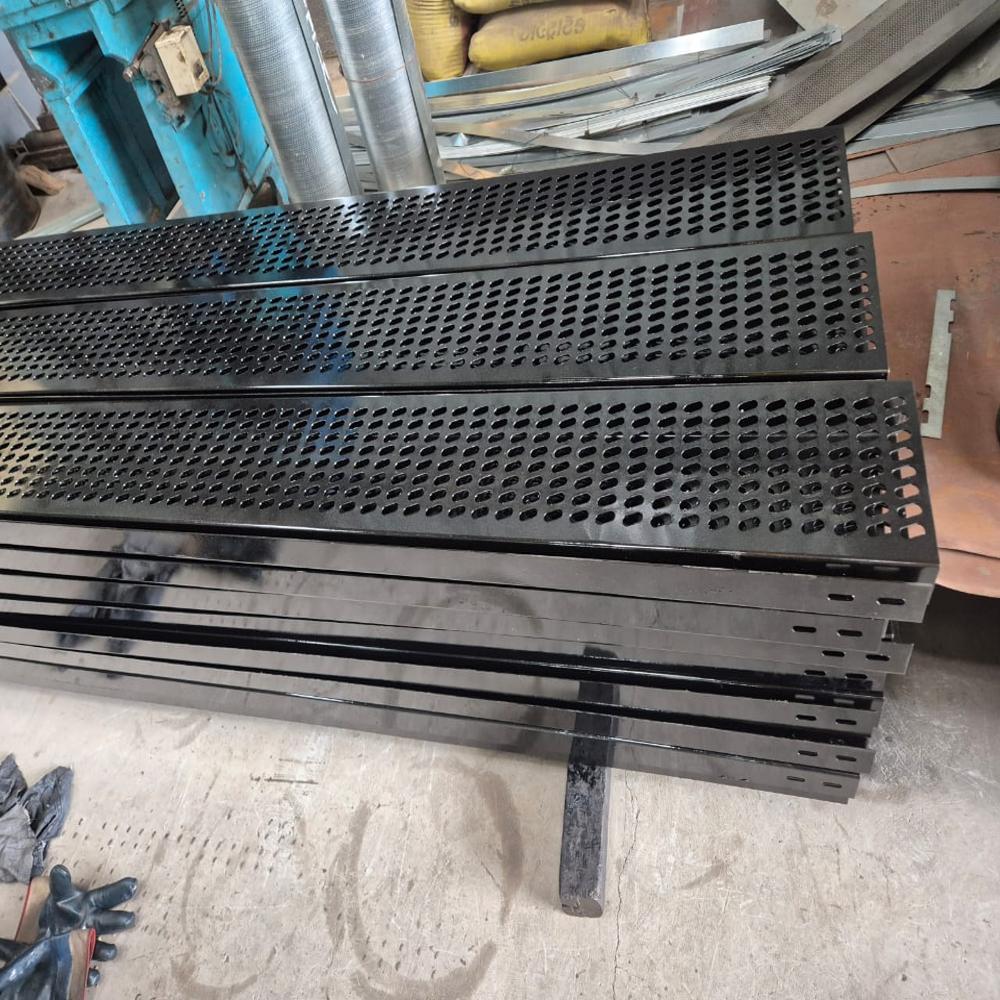

COLOR COATED G.I CABLE TRAY

COLOR COATED G.I CABLE TRAY Specification

Max. Working Load
10 KG

Surface Finish
GI Galvanized

Deflection
-

Conductor Material
Other

Power Rating
250

Product Type
Perforated Through

Standard Thickness
1.6 Millimeter (mm)

Length
2.5 Meter (m)

Width
250 Millimeter (mm)

Side Rail Height
50 Millimeter (mm)

Weight
9 Kilograms (kg)

Dimension (L*W*H)
250 MM X 50 MM X 1.6 MM X 2500 MM Millimeter (mm)

Rated Voltage
220 Volt (V)

Cable Type
perforated type

Color
Black

Operating Temperature
1142 Kelvin (K)

Warranty
6

Display Type
cable

Phase
singlee

Conductor
cable tray

Features
g.i type

Rated Current
523 Volt (v)

Frequency
465 Hertz (HZ)

Material
g.i

COLOR COATED G.I CABLE TRAY Trade Information

Minimum Order Quantity
50 Meter

Delivery Time
6 Days

About COLOR COATED G.I CABLE TRAY

A cable tray is a structural system used to securely support and organize electrical cables, wires, and communication lines in industrial, commercial, and residential settings. It provides a safe pathway for wiring, helping to maintain organization and ease of maintenance while ensuring compliance with electrical codes. Cable trays are especially useful in environments where frequent changes to wiring systems are expected, such as data centers, factories, and large office buildings.

Constructed from materials like galvanized steel, stainless steel, aluminum, or fiberglass-reinforced plastic, cable trays offer strength, durability, and resistance to corrosion. They come in various types, including ladder, perforated, solid bottom, and wire mesh trays, each suited to specific installation needs. For example, ladder trays allow maximum ventilation and are ideal for heavy-duty cables, while solid-bottom trays offer better protection in dusty or moist environments.

Cable trays are typically mounted on walls, ceilings, or under raised floors and are available in different sizes and shapes to accommodate various cable capacities. Their modular design allows easy expansion or reconfiguration of cable systems. By promoting better cable management, reducing fire risks, and simplifying troubleshooting, cable trays play a critical role in efficient and safe electrical system design.

Durable Galvanized Build

This cable tray is manufactured from high-quality galvanized iron (G.I), ensuring resistance against corrosion and wear. The black color coating further enhances its lifespan, making it suitable for hazardous or demanding environments where durability is essential.

Efficient Cable Organization

With a perforated design and ample dimensions (250 mm x 50 mm x 2,500 mm), this tray allows for organized cable placement, improved air circulation for cooling, and straightforward cable routing. Its built to handle up to 10 kg of working load efficiently.

Smart Practical Applications

Ideal for supporting power distribution in both industrial and commercial settings, the tray operates at a frequency of 465 Hz and is rated for 220 Volts, making it compatible with a wide range of electrical systems across India. The 1-year warranty provides added peace of mind to users.

FAQs of COLOR COATED G.I CABLE TRAY:

Q: How do I install the Color Coated G.I Cable Tray in my facility?

A: Installation involves mounting the cable tray on the prepared supports, ensuring it is level and securely fixed. Cables can then be laid along the tray following the perforated arrangement. For best results, it is recommended to follow local electrical standards and safety practices.

Q: What are the benefits of using a perforated G.I cable tray?

A: The perforated design promotes efficient air flow, which helps in cooling the cables and reducing the risk of overheating. It also facilitates straightforward maintenance and enables easy addition or removal of cables as needed.

Q: Where is this cable tray most commonly used?

A: This cable tray is best suited for industrial and commercial spaces like factories, warehouses, or data centers where robust cable management and safety from environmental wear are required. Its supplied across India by certified manufacturers.

Q: When should I consider replacing my G.I cable tray?

A: If you notice any significant physical damage, excessive corrosion despite the galvanized coating, or your cable management needs exceed the maximum working load, its advisable to replace the tray for safety and efficiency.

Q: What is the process for claiming warranty on this product?

A: Should you encounter any defects or issues within the 1-year warranty period, contact the supplier or manufacturer with your purchase details to initiate a claim. They will guide you through inspection and potential replacement steps.

Q: Can this cable tray handle high operating temperatures?

A: Yes, the tray is rated for up to 1142 Kelvin, which indicates its suitability for environments with elevated temperatures without compromising on safety or structural integrity.

Q: What type and size of cables can be placed in this tray?

A: The trays dimensions and load capacity make it suitable for a variety of standard power and electrical cables, especially single-phase systems, as long as the total weight does not exceed 10 kg.
