HOT DIP G.I CABLE TRAY

A Hot Dip G.I. (Galvanized Iron) Cable Tray is a protective, structural system designed to support and manage electrical cables in commercial and industrial settings. It is essentially a steel support structure that has been coated with a thick layer of zinc using the hot-dip galvanization process.

Key Components and Finish

1. Structure

The term "cable tray" refers to the support system itself, which can come in several primary structural types:

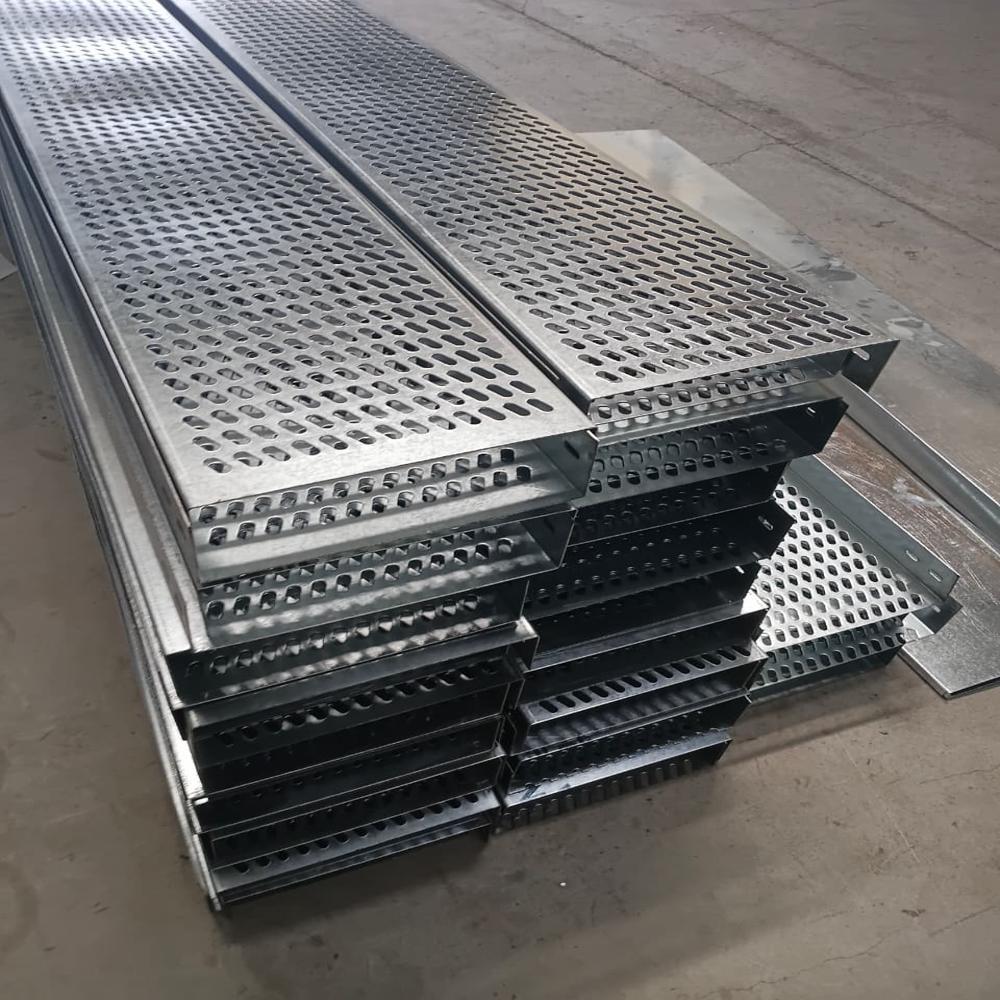

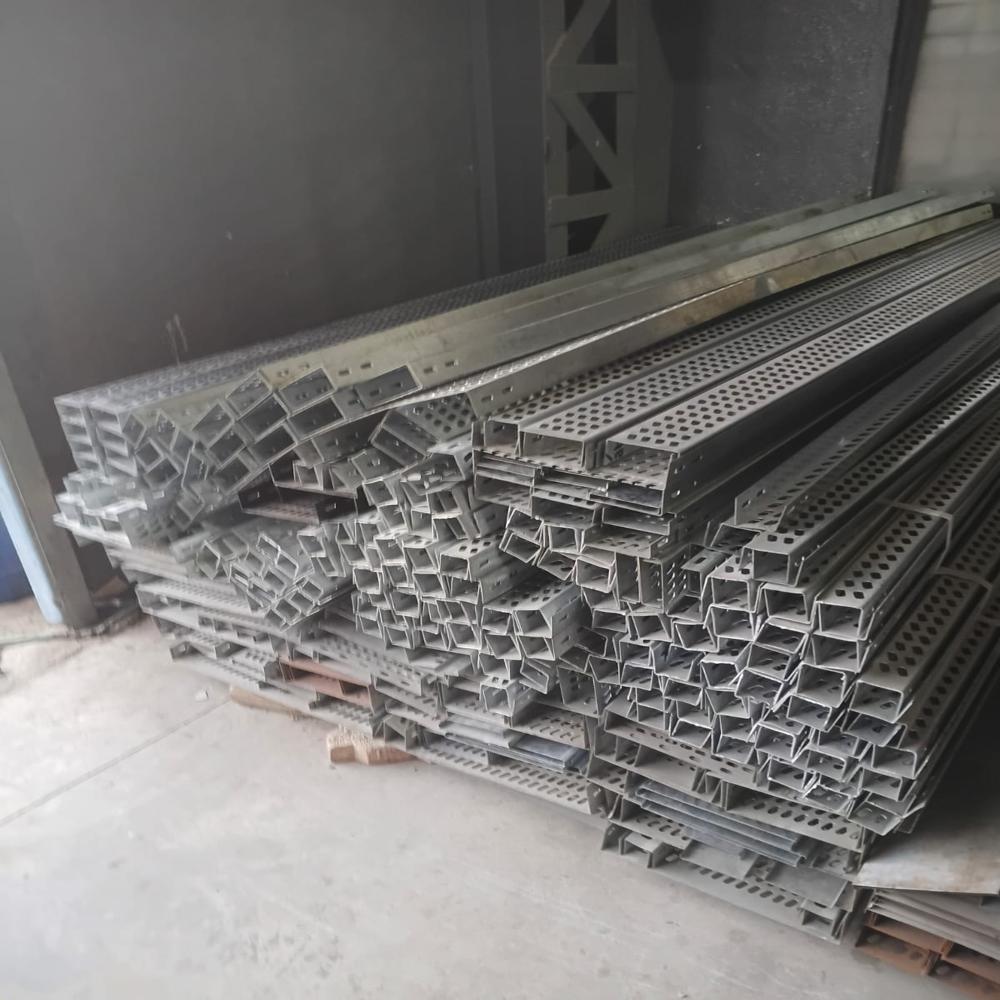

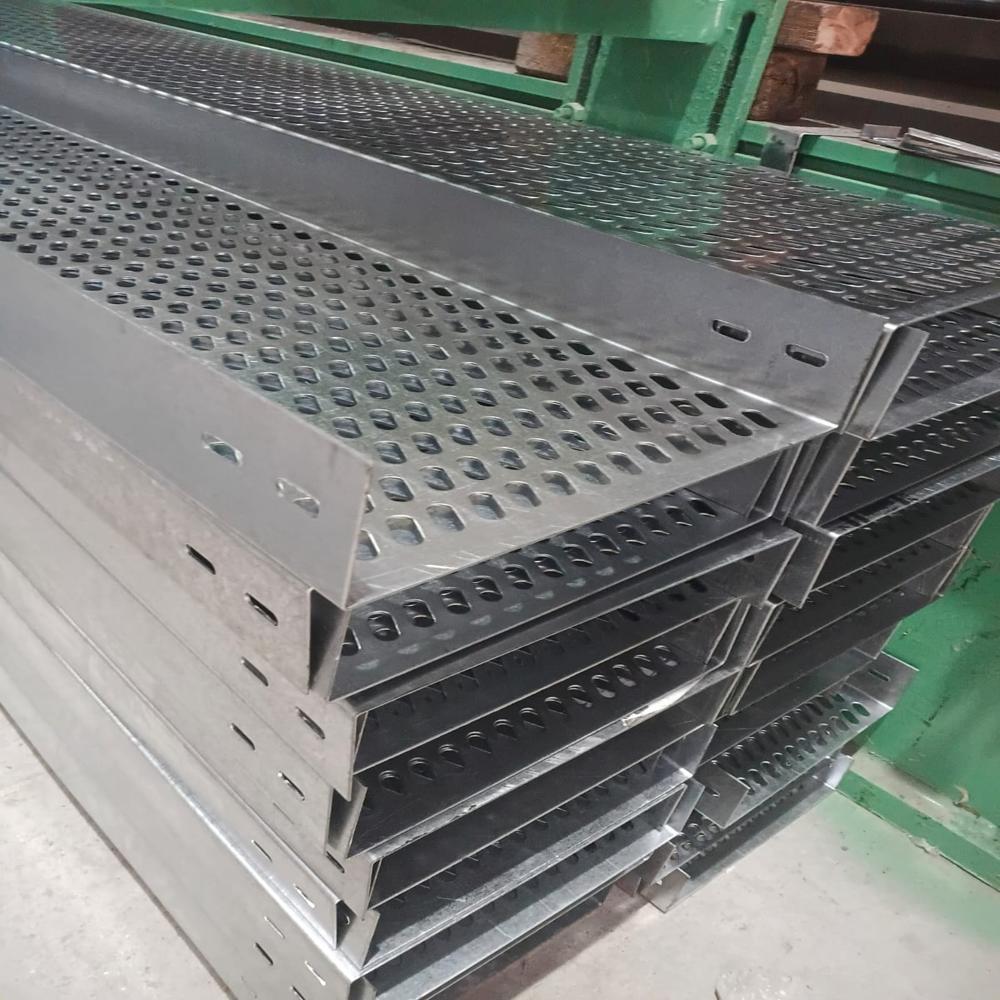

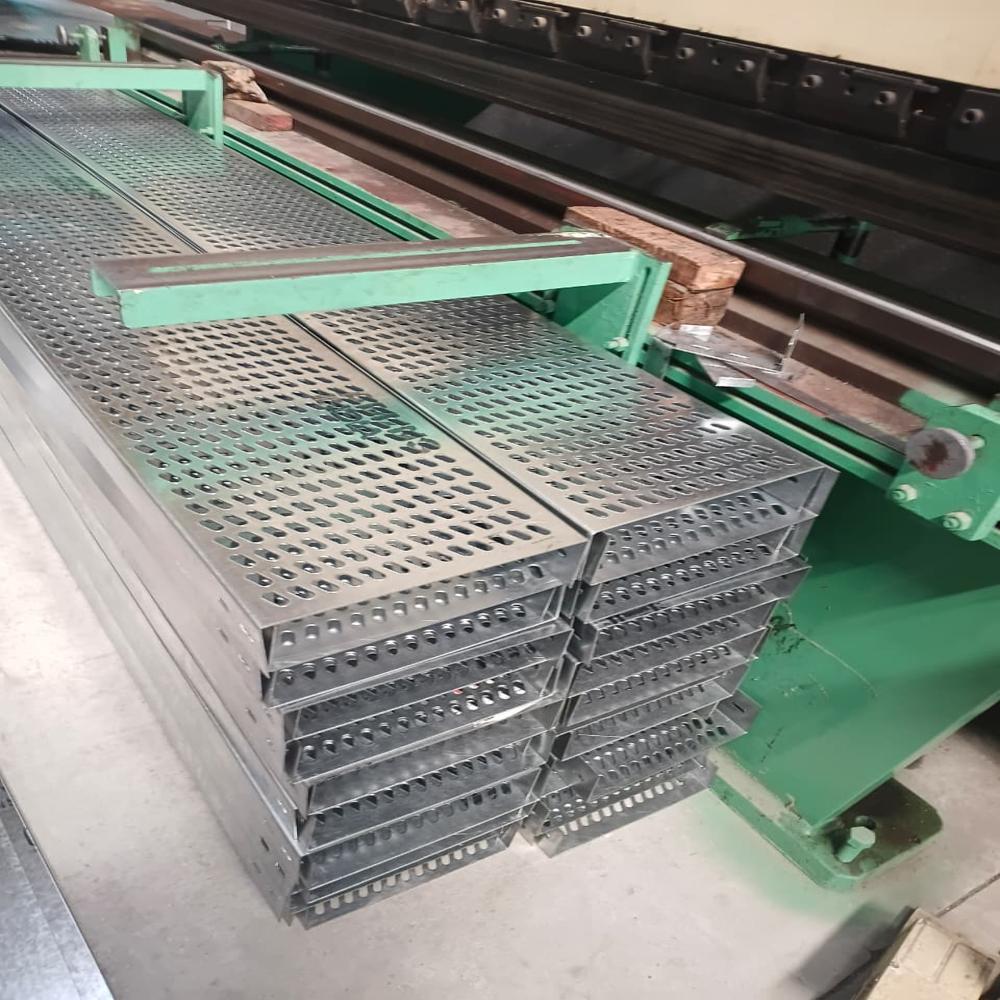

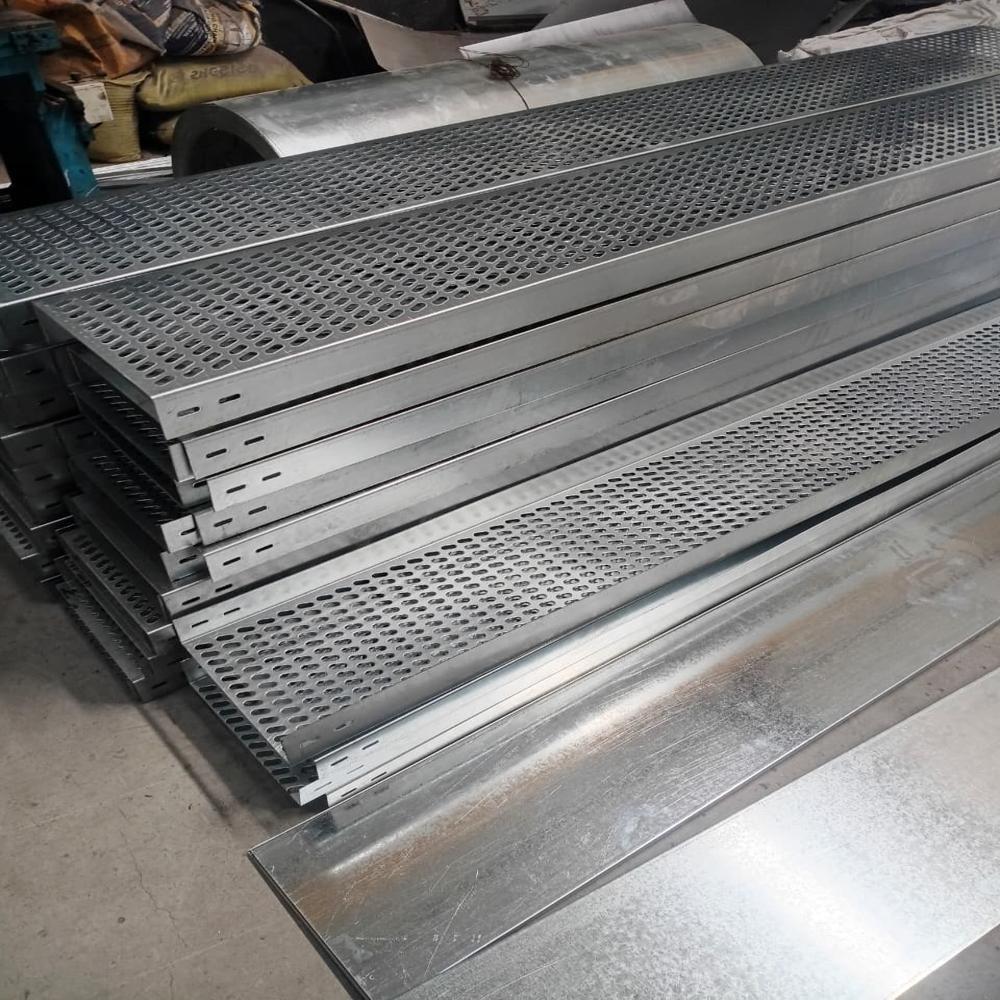

• Perforated (Ventilated) Tray: Features holes in the bottom to provide cable ventilation, heat dissipation, and points for cable fastening.

• Solid Bottom Tray: Provides maximum physical protection for cables but requires separate drain holes to prevent moisture buildup.

• Ladder Tray: Consists of two side rails connected by rungs, offering maximum airflow and easy cable entry/exit.

2. Finish (Hot Dip G.I.)

The Hot Dip G.I. (Galvanized Iron) finish is the defining feature, providing superior durability and corrosion resistance:

• Material: The tray is fabricated from carbon steel.

• Process: After fabrication (cutting, welding, punching), the entire steel component is immersed in a bath of molten zinc (typically at $450{\circ} \text{C}$).

• Coating: This process creates a thick, metallurgically bonded zinc layer on all surfaces (interior and exterior). The coating acts as a barrier to moisture and corrosion, and as a sacrificial anode to protect the underlying steel if the coating is scratched.

• "G.I." (Galvanized Iron) is the common industry term referring to this zinc-coated steel material.

Primary Purpose and Applications

The combination of the robust steel structure and the durable HDG coating makes this cable tray type ideal for:

• Harsh Environments: Essential for outdoor installations, coastal areas (marine environments), high-humidity zones, and heavy industrial facilities (like chemical plants, oil refineries, and power generation stations) where long-term protection against corrosion is critical.

• Heavy-Duty Cable Support: Capable of supporting large volumes and heavy weights of power and control cables over long support spans.

• Electrical Safety: Provides a continuous electrical path for equipment grounding and offers a degree of physical protection and electromagnetic shielding for the cables.
